Saringan Getar Putar

The product is applicable to any powder, granule, liquid screening and filtering of the industry. SY series rotary vibration screen is widely used in chemical industry, medicine powder, liquid, paint, pigments, cosmetics, oil, resin, ceramic slurry, clay slurry, lime, refractory powder at the end, magnetic powder, polishing powder, fruit juice, beverage, sugar, salt, MSG, spices, milk powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate, help solvents, fire extinguishing agents, as well as the environmental protection industry waste water, waste water treatment process of screening, filtering.

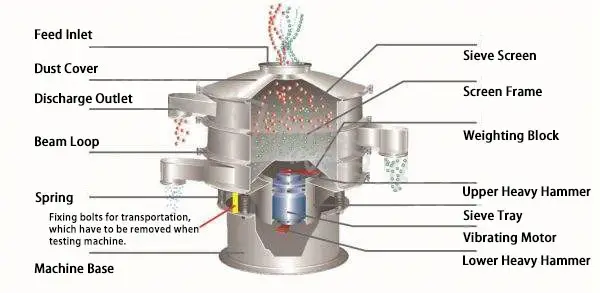

The rotating motion of the motor is transformed into a horizontal, vertical and inclined three-dimensional motion by using the heavy hammer (unbalanced weight) installed up and down the motor shaft, and then the motion is transmitted to the screen surface to make the material do an outward involute motion on the screen surface. Hence, it is also called rotary vibrating screen. This series of rotary vibrating screen has advantages of long running track and high utilization rate of screen surface. Adjusting the phase angle of heavy hammers at the upper and lower ends changes the moving track of materials on screen surface for precisely fine screening and probability sieving, and etc.

SY Series 3D Rotary Vibrating screen

3D Rotary vibrating screen introduction:

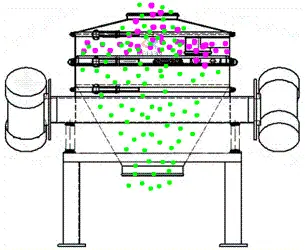

3D Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. 3D rotary vibrating  screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.
